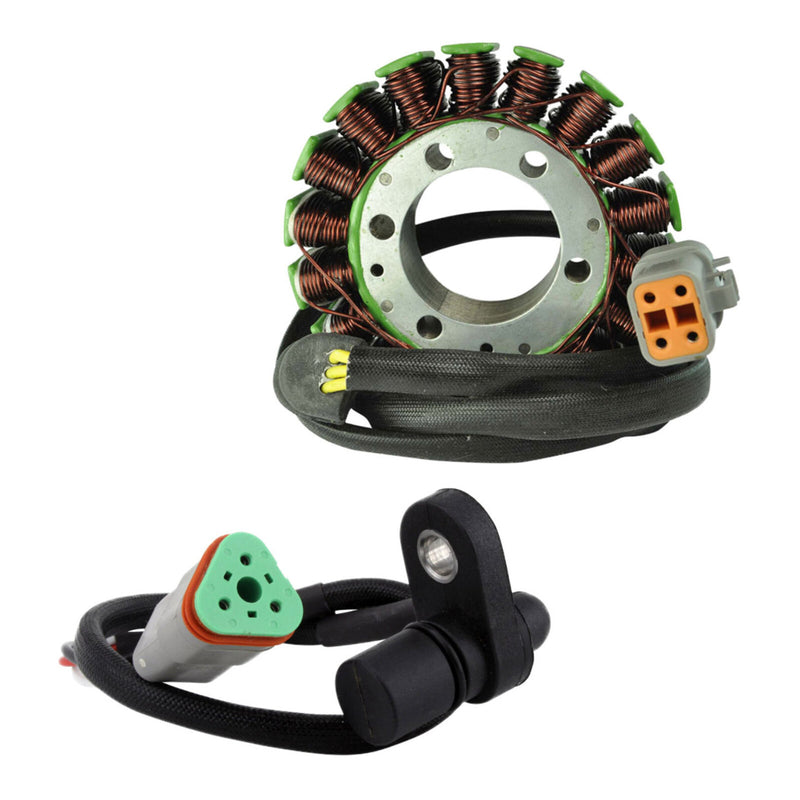

STATOR KIT ASSTD CAN-AM MODELS RFR FITMENTS (RMS900-106953)

Brand new aftermarket stator and speed sensor kit.

• Direct replacement for the original unit.
• Plug-and-play, direct fit and easy installation.
• All products are tested before shipping.

Stator Features:

• High-grade lamination materials.
• High-grade copper windings, resistant to temperatures up to 200°C.
• Connector included.
• Rubber grommet included.

Before Installing the New Stator:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on the stator and regulator/rectifier.
• Check and repair any melted wiring.
• Apply high-temperature dielectric grease to all connectors.

The stator may use a different wire colour code from the original. All wires are installed in the correct order. Do not change the wiring configuration. This stator is designed as a direct plug-in replacement.

Always use thread-locking compound when installing the stator. If the stator includes a pickup coil, ensure the air gap is correctly adjusted. Set it as close as possible, but no less than 0.010 inches.

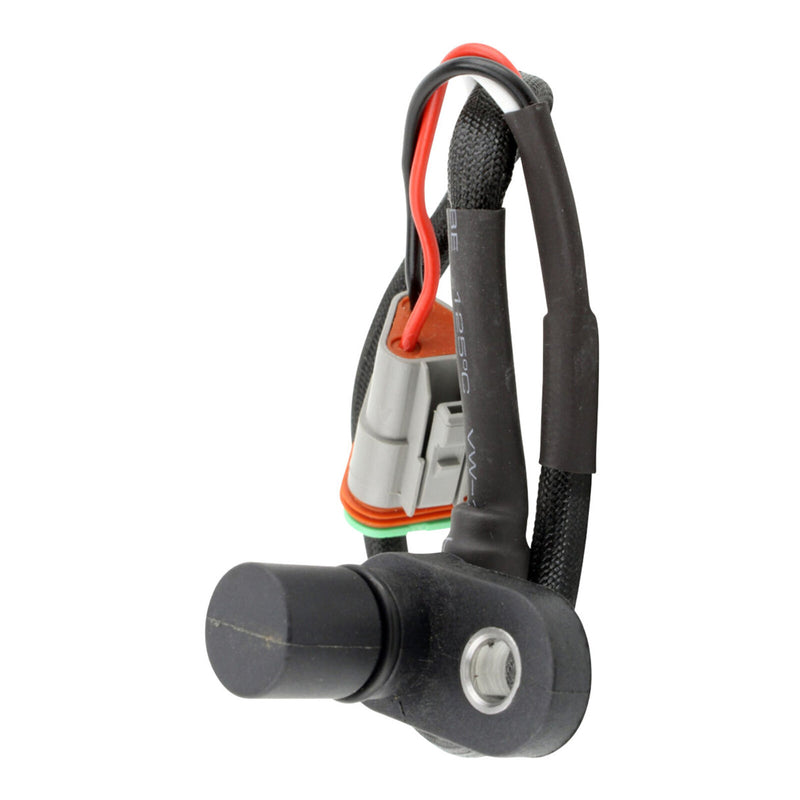

Speed Sensor:

Direct replacement for the original unit.

Warning: Risk of electric shock. Disconnect the battery before servicing. Installation should be carried out by a qualified technician to avoid malfunction.

Stator Dimensions:

• Interior diameter: 41 mm
• Exterior diameter: 104 mm
• Thickness: 30 mm
• Stator-to-grommet wire length: 140 mm
• Grommet-to-plug wire length: 850 mm

Other Specifications:

• Number of wires: 3
• Number of plugs: 1
• Number of terminals: 3
• Alternator resistance: Yellow wire to yellow wire: 0.4 ohms ±20%

Speed Sensor Dimensions:

• Width: 19 mm
• Length: 50 mm
• Height: 37 mm
• Wire length: 350 mm

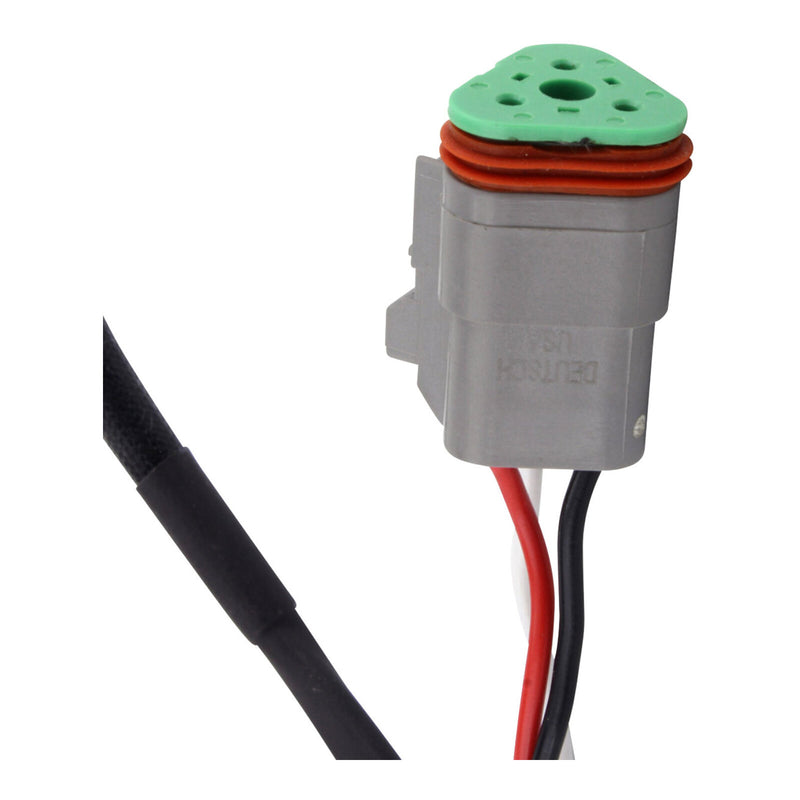

• Number of plugs: 1
• Number of terminals: 3
