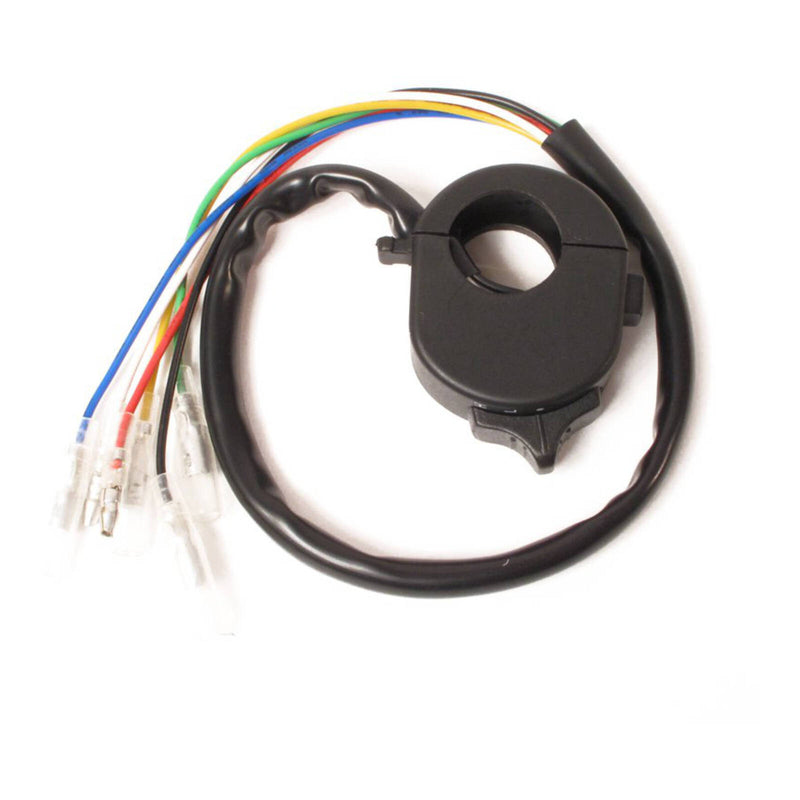

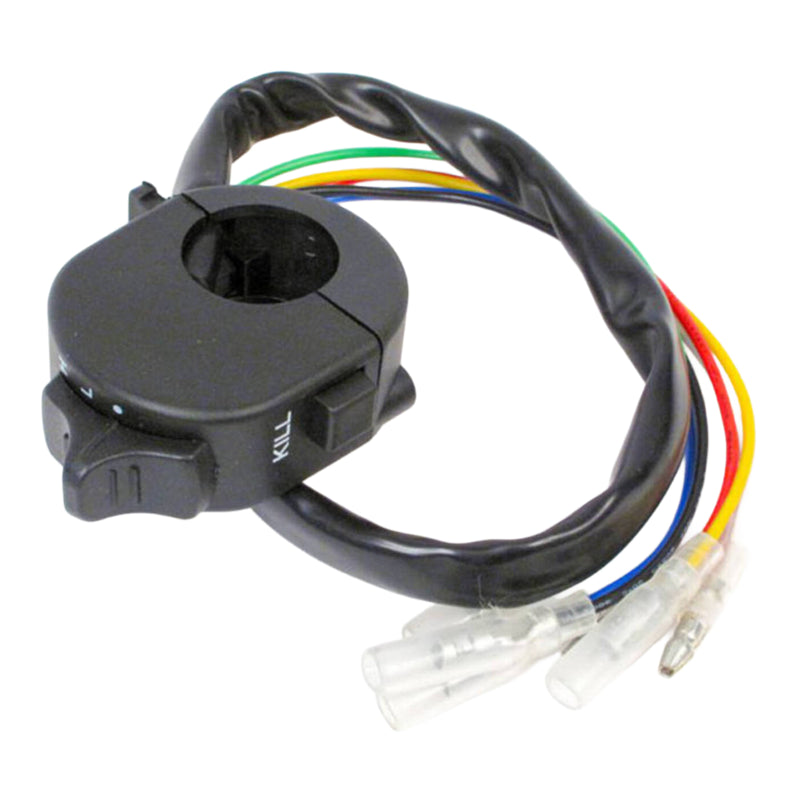

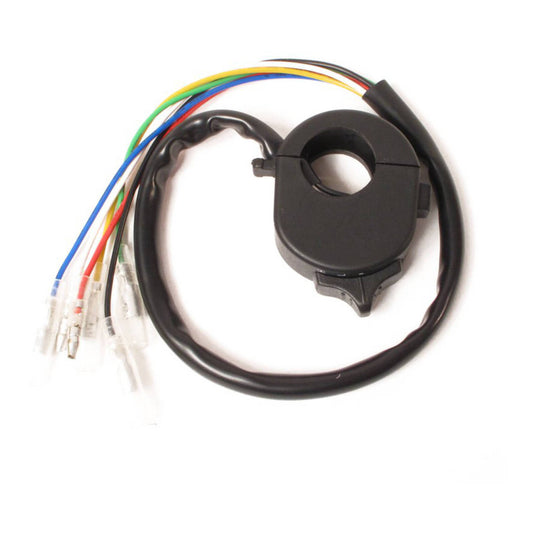

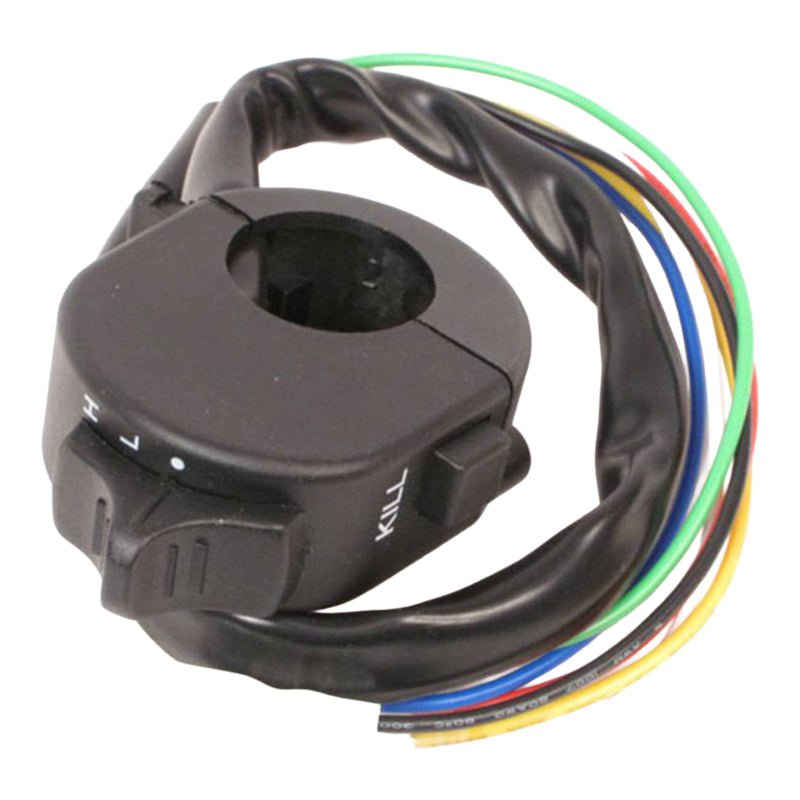

WMP SWITCH BLOCK HEADLIGHT ON-OFF/HI-LO (20.7mm)

The WMP Headlight Switch Block features a slim, compact design with high, low and off headlight settings plus an integrated kill switch. Pre-wired with bullet terminals for quick installation, it is compatible with 7/8-inch handlebars. At only 20mm wide and 42mm high, it provides a compact alternative to bulky OEM switch blocks.

Features:

• Pre-wired with 18-inch cable and bullet terminals.
• Compatible with 7/8-inch handlebars.
• Full wrap-around design.
• Three-stage headlight switch: high/low/off.
• Includes kill switch.
• Voltage range: 11-15V.
• Maximum current: 2.5A.
• Material: ABS plastic.
• Width: 20mm.
• Height: 42mm.

Wiring Configuration:

• Red: Positive.
• Black: Earth.
• White: Kill switch.
• Green: Low beam.
• Yellow: High beam.
• Blue: Parking light.
